Paper Banding machine
Banding Machine

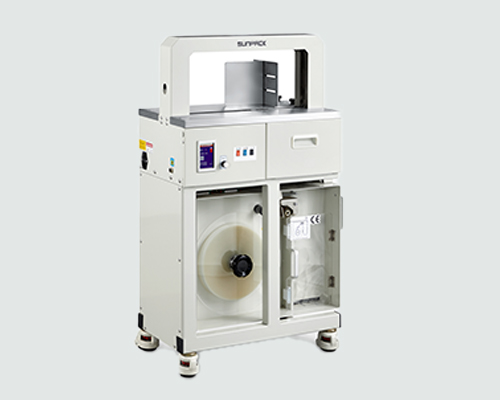

WK32-30C Paper Banding Machine
A high tension table-top machine that wraps and heat-seals paper or OPP film bands around bundles.
Ideal for cards, stationery, printed material, cartons and other products that need a neat, secure band. Tension goes up to 100N, and there is no warm-up wait, so it is ready as soon as you switch it on.
Key Features
High Tension
Adjustable up to 100N for firm, tight bundles.
No Warm-Up Wait
Heat sealing is ready right away, so work starts immediately.
Heater Temperature Display
The screen shows sealing temperature to keep seals consistent.
Built-In Counter
Counts the bands applied, which helps with batch tracking.
Paper or OPP Film
Works with kraft paper band as well as OPP film band.
Jumbo Roll Dispenser
Holds rolls of 500 to 800 meters, so you change rolls less often.
Media Gallery
Specifications
| Model WK32-30C | |
|---|---|
| Applicable Material | OPP tape or kraft paper band |
| Band Specification | Width 29–29.3 mm • Thickness 110–150 micron • Length 500 m • Core 40 mm |
| Arch Size | W 470 × H 208 mm |
| Banding Size | Min L 40 × W 25 mm • Max W 460 × H 200 mm |
| Banding Speed | 24 bands per minute |
| Banding Tension | 5–100 N |
| Sealing Method | Heat sealing |
| Control System | PCB with LCD screen control panel |
| Power Supply | 220V 50Hz single phase, or 110V 60Hz single phase |
| Power Rating | 400 W |
| Table Height | 850 mm |
| Machine Dimensions | L 695 × W 380 × H 1116 mm |
| Machine Weight | 92 kg |
Ideal For
Interested in the WK32-30C?
Send us an enquiry for pricing, availability and a demo.
